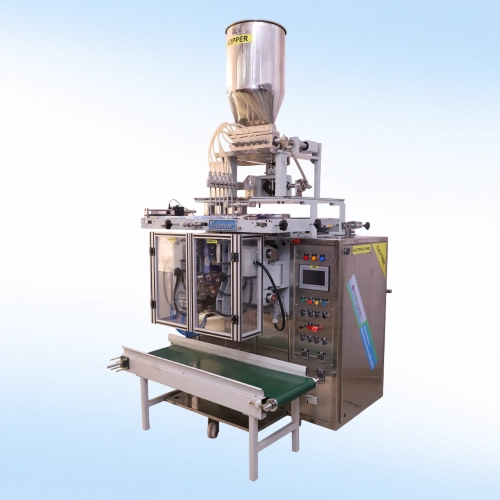

Multi Track VP 600L/VP 800L
| Technical Specifications for Multi Track VP 600L / VP 800L |
|---|
| Sealing Style | Four Side Seal |
| Speed | 60–70 Strokes/Min depending upon fill weight, Pouch Width & Product Density |
| Power Consumption | 6 KW |
| Registration System | Photocell control using optical scanning head sensor and amplifier unit |
| Material of Construction | Contact Parts SS 304/316 |
| Main Frame | MS with Powder Coating with air cooled panel |
| Mounting | Vibration absorbing self aligning Pads |
| Net Weight | 1400 kg approx |
| Reel Feed System | Single reel film laminate stock reel feed, sensor controlled motorized web feed error correction system |
| Max Reel Diameter | 450 mm |
| Max Reel Width | 600 mm / 800 mm |
| Core ID | 76 mm ID |
| Overall Dimension | Including Out-feed Conveyor, Electrical Panel & Unwind 2.0M(W) x 2.4M(H) |
| Machine Working Motion | Intermittent Motion Machine |
| Filling Unit | Volumetric Piston Filler with power full suck back system |
| Out Feed Conveyor | Optional as per customer requirement |
| Pouch Cutting Type | Plane cutting ZigZag cutting blade with batch cutting feature for horizontal sachet cutting |
| Accuracy & Scrap Rate | 1%+- Depend upon product & operator efficiency |
| Pneumatics | Festo Make |
| Air Requirement | 6 kg bar Air Pressure |
Multi Track VP 600L/VP 800L
At Vaishnavi Packtech Pvt. Ltd., we offer advanced Multi Track Packaging Machines – VP 600L / VP 800L, designed for high-speed and efficient packaging of free-flowing and semi-free-flowing products. Equipped with multiple tracks for simultaneous filling and sealing, these machines significantly increase production capacity while maintaining consistent filling accuracy and reliable sealing performance. Built with robust construction and user-friendly controls, the VP 600L / VP 800L machines are ideal for large-scale packaging operations and are widely used for packaging products such as sugar, salt, spices, instant coffee, tea, pharmaceutical powders, granules, mouth fresheners, and other similar products in sachet form.
Key Features
Our Multi Track Packaging Machines VP 600L / VP 800L are engineered to handle sachet packaging efficiently with:
High-speed multi-track sachet packaging
Accurate dosing system
Servo-driven for smooth operation
Multiple lanes for higher production
PLC with user-friendly HMI control
