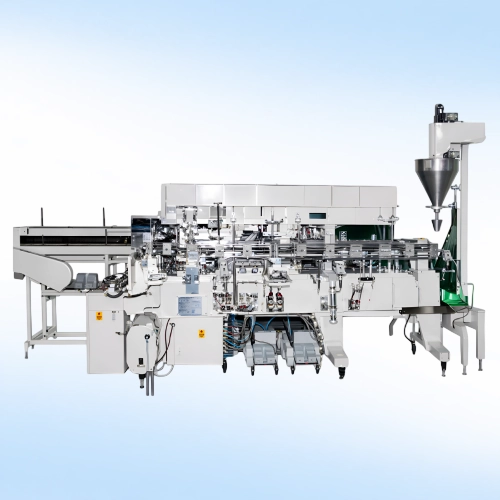

Lined Carton Machine VP 80P
| Technical Specifications for Lined Carton Machine VP 80P |
|---|
| Machine Mechanism | Intermittent |
| Stations | 22 Stations |
| Rated Speed | 48–50 cartons/min (depends upon product and pack size) |
| Power Consumption | 8 KW (depending upon equipment configuration) |
| Electric Supply | 3 Phase, 415V, 50Hz |
| Main Motor | 3 HP, 415V, 3 Phase, 1440 RPM |
| Weight | 2000 kg |
| Packing Limit | 15 gms – 1000 gms (depends on product density) |
| Temperature Controller | PID Based |
| Machine Colour | Shell Grey |
| Product To Be Packed | Any type of non-free / free flow powder |
| Coding Unit | Embossing station provided (digits not included) or Laser Printer option |
| Packing Material | Duplex carton with heat sealable liner attached inside |
| Floor Space | 4000 x 2600 mm |
| Filling Unit | Servo Auger, Cup Filler, Multi Head Weigher as per customer requirement |
| Gluing | Cold Gluing & Hot Gluing (system optional) |
| Carton Size (L) | Min 60 mm / Max 200 mm |
| Carton Size (W) | Min 22 mm / Max 108 mm |
| Carton Size (L+W) | Min 94 mm / Max 285 mm |
| Carton Size (H) | Min 83 mm / Max 250 mm |
Lined Carton Machine VP 80P
At Vaishnavi Packtech Pvt. Ltd., we offer the reliable Lined Carton Packaging Machine – VP 80P, designed for efficient and hygienic packaging of products in lined carton packs. Equipped with a precise filling mechanism and carton lining system, this machine ensures accurate product filling while maintaining product freshness and protection. The VP 80P is built with robust construction and user-friendly controls, providing consistent performance with minimal downtime. Its efficient and compact design makes it suitable for small to medium-scale packaging operations. It is widely used for packaging products such as tea, spices, dry powders, granules, and other similar products that require secure carton packaging with inner lining for enhanced product safety and shelf life.
Key Features
Our Lined Carton Packaging Machine – VP 80P is engineered to handle carton packaging efficiently with precise product filling, accurate carton lining, reliable sealing, and consistent high-speed operation for a wide range of products.
Precise Product Filling System
Strong and Secure Carton Sealing
Robust and Durable Construction
Automatic Carton Lining Mechanism
User-Friendly Control Panel
