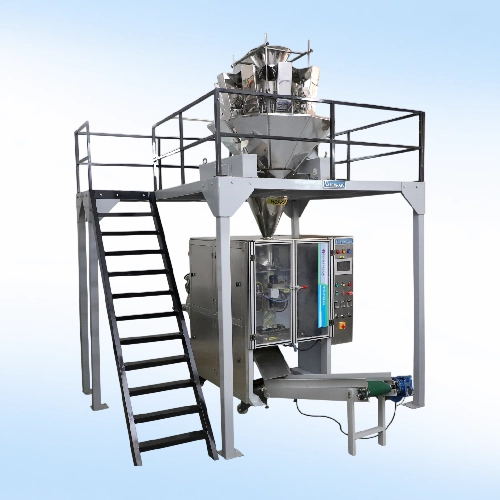

Collar Type with Multi-Head Weigher
| Technical Specifications forCollar Type with Multi-Head Weigher |
|---|
| Sealing Style | Center Seal |
| Speed | 80 Strokes/Min depending upon fill weight, Pouch Width & Product Density |
| Power Consumption | 8 KW to 10 KW |
| Registration System | Photocell control using optical scanning head sensor and amplifier unit |
| Material of Construction | Contact Parts SS 304/316 |
| Main Frame | MS with Powder Coating with air cooled panel |
| Mounting | Vibration absorbing self aligning Pads |
| Net Weight | 1400 kg approx |
| Reel Feed System | Single reel film laminate stock reel feed with sensor controlled motorized web feed error correction system |
| Max Reel Diameter | 550 mm |
| Max Reel Width | 600 mm / 800 mm |
| Core ID | 76 mm ID |
| Overall Dimension | Including Out-feed Conveyor, Electrical Panel & Unwind – 2.0M(W) x 2.4M(H) |
| Machine Working Motion | Intermittent Motion Machine |
| Filling Unit | Volumetric Piston Filler with powerful suck back system |
| Out Feed Conveyor | Optional as per customer requirement |
| Pouch Cutting Type | Plane cutting ZigZag cutting blade with batch cutting feature for horizontal sachet cutting |
| Pouch Cutting Vertical | Perforation cutting or slitting along with 'V' notch of sachets for all the lanes |
| Batch Printer | Optional, extra cost item |
| Accuracy & Scrap Rate | 0.2% +/- depending upon product & operator efficiency |
| Pneumatics | Festo Make / Janetics |
| Air Requirement | 1000 PM Capacity @ 6 kg/cmg air pressure (extra cost) |
| Total No. of Heads | Available in Four Head, Ten Head, Fourteen Head |
Collar Type with Multi-Head Weigher
At Vaishnavi Packtech Pvt. Ltd., the Collar Type with Multi-Head Weigher offers a high-speed, precision packaging solution for free-flowing and granular products. Featuring a multi-head weigher and a robust collar type vertical form-fill-seal system, it ensures accurate weighing, consistent filling, minimal wastage, and strong pouch sealing for items like rice, pulses, snacks, dry fruits, tea, coffee, and granules. Designed for high-volume production, the Multi-Head Weigher maintains hygiene, preserves product quality, and delivers reliable performance while reducing operational costs, reflecting over 25 years of Vaishnavi Packtech’s expertise and innovation in advanced packaging technology.
Our Packaging Capabilities
Our Collar Type with Multi-Head Weigher is engineered to handle a wide range of free-flowing and granular products with:
High-speed packaging performance
Consistent pouch quality
Low maintenance
Accurate weight control
Hygienic processing standards
