Collar Type with Cup Filler
| Technical Specifications for Collar Type with Cup Filler |
|---|
| Sealing Type | Centre Seal Pouch |
| Suitability | Any heat sealing films (laminates) or Alu foil based material |
| Power Consumption | 4 KW, 3 Phase |
| Registration System | Photocell control using optical scanning head sensor and amplifier unit |
| Material of Construction | Contact Parts SS 304 |
| Main Frame | MS with Powder Coating |
| Mounting | Vibration absorbing self aligning pads with two roll |
| Net Weight | 1200–1400 kg approx |
| Reel Feed System | Single reel film laminate |
| Max Reel Width | 450 mm |
| Core ID | 76 mm ID |
| Overall Dimension | Including Out-feed Conveyor, Electrical Panel & Unwind – 2.0M(W) x 2.0M(L) x 2.3M(H) |
| Machine Working Motion | Intermittent Motion Machine |
| Out Feed Conveyor | Optional as per customer requirement |
| Pouch Cutting Type | Plane cutting, ZigZag cutting blade with batch cutting feature for horizontal sachet cutting |
| Batch Printer | Not in standard scope, optional extra cost item |
| Accuracy | 2%+ depending upon product density & operator efficiency |
| Pneumatics | Festo |
| Air Requirement | 1000 PM Capacity @ 6 kg/cmg Air Pressure (Air Compressor Extra Cost) |
| Machine Type | Intermittent Motion Mechanism |
| Control System | Micro Controller Based Machine |

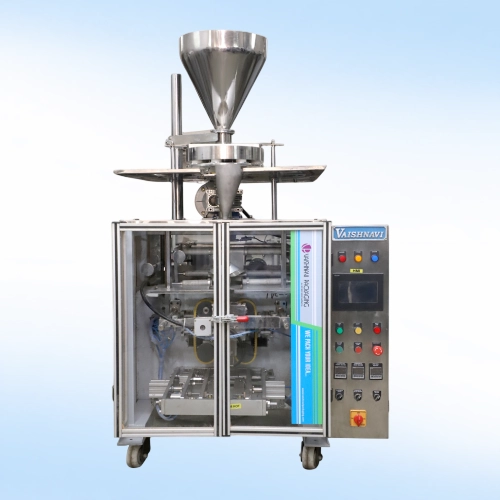

Collar Type with Cup Filler
At Vaishnavi Packtech Pvt. Ltd., we offer the efficient Collar Type with Cup Filler, designed for accurate and reliable packaging of free-flowing products in pouch form. Equipped with a precision cup-filling system and a collar-type pouch forming mechanism, this machine ensures consistent filling accuracy and uniform pouch formation. The Collar Type with Cup Filler is built with robust construction, smooth operation, and user-friendly controls, delivering dependable performance with minimal downtime. Its compact design and efficient functionality make it an ideal solution for small to medium-scale packaging operations. It is widely used for packaging products such as sugar, salt, grains, pulses, tea, spices, and other similar free-flowing products requiring precise cup-based filling and secure pouch packaging.
Key Features
Our Collar Type with Cup Filler is engineered to handle pouch packaging efficiently with an accurate cup-filling system, consistent product dosing, reliable sealing, and smooth continuous operation for free-flowing products.
Precision Cup Filling System
Reliable Sealing Mechanism
User-Friendly Controls
Collar Type Pouch Formation
Robust Machine Construction
