Collar Type with Servo Auger
| Technical Specifications for Collar Type with Servo Auger |
|---|
| Sealing Style | Center Seal |
| Speed | 30 to 100 pouch/min (depends upon product type & quantity to be filled) |
| Packing Material | Laminate |
| Product To Be Packed | Free flow or non-free flow powder |
| Filling Capacity | 5 gm to 2000 gm |
| Power Consumption | 4 KW |
| Max Roll Width | 450 mm |
| Max Roll Dia | 350 mm |
| Reel Core Dia | 76 mm |
| Main Motor | 2.2 KW, 3 Phase, 415 Volts |
| Machine Dimension | 2 m x 1.5 m x 3 m (L x W x H) |
| Net Weight | 1000 kg |
| Gross Weight | 1200 kg |
| Air Consumption | 0.5 normal litre per machine cycle |
| Air Compressor | 4 Cylinder, Single Stage, 3 HP, 100 Litre tank, 2 CFM at 6 kg/cm² pressure |
| Temperature Controller | PID Based |
| Machine Colour | Mushell Grey / Powder Coated |
| Vertical & Horizontal Sealing | Mechanical / Pneumatic / Servo |
| Batch Cutter Operation | Pneumatic / Mechanical |
| Film Draw Off | Servo Control |
| Film Tracking | Automatic |
| Control System | Automatic |
| Display Setting | Through touch panel screen |
| Safety | Machine covered by acrylic sheet |
| Machine Structure | All contact parts SS 316 & main body powder coated |

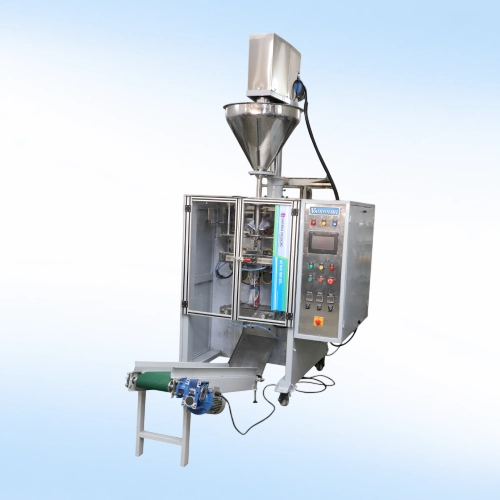

Collar Type with Servo Auger
we offer advanced Collar Type Servo Auger Machine, specially designed for accurate and efficient packaging of powder and non-free flowing products. Our machine combines precision auger dosing technology with high-speed packaging performance to deliver consistent filling accuracy and reliable sealing. It is ideal for packaging products such as flour, spices, milk powder, protein powder, coffee powder, detergent powder, and other fine powders.
Our Packaging Capabilities
Our Collar Type Servo Auger Machine is engineered to handle powder products efficiently with:
High precision servo auger filling system
Accurate powder dosing with minimal product wastage
Hygienic stainless-steel construction
Consistent pouch formation and sealing quality
User-friendly operation and easy maintenance
